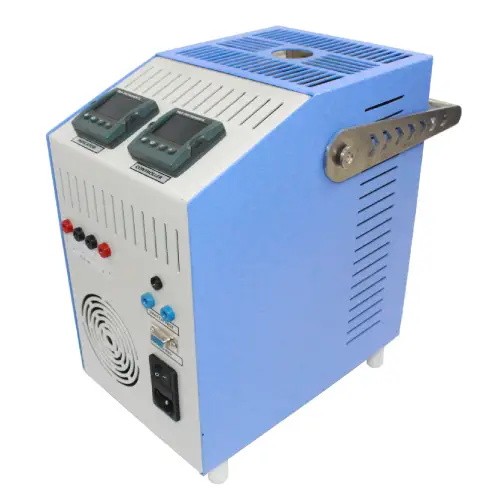

Dry block temperature Calibrator (1200-TS/1200-TS(I))

Overview:
R&D Instruments’ 1200TS Series High Temperature Dry Block Calibrator is designed for accurate and reliable calibration of high-temperature sensors and instruments used in industrial and laboratory environments. With a wide operating range from 150°C to 1200°C, the calibrator enables precise testing and verification of thermocouples, RTDs, temperature gauges, thermometers, switches, and transmitters.

The system features stable temperature control through advanced design, ensuring high accuracy (±2°C) and excellent stability across the full temperature range. A large 33 mm well diameter with 130 mm immersion depth allows calibration of multiple probes using interchangeable multi-hole inserts, providing flexibility for different sensor sizes.

The unit offers switchable temperature units (°C / °F / °K), LED display, and temperature switch testing capability in the 1200TS (i) model. With measurement support for multiple thermocouple types and Pt100 RTD sensors, along with robust construction, traceable calibration certification, and optional NABL accreditation, the 1200TS series provides a dependable solution for high-temperature calibration in power plants, petrochemical facilities, manufacturing industries, and calibration laboratories.

Dry block temperature Calibrator (1200-TS/1200-TS(I)) Applications:

Calibration and verification of high-temperature thermocouples used in furnaces, kilns, and industrial heating systems.
Testing and calibration of RTD temperature sensors (Pt100) used in process monitoring applications.
Calibration of industrial temperature gauges and thermometers operating at elevated temperatures.
Temperature switch testing and verification for safety and control systems.
Calibration and simulation testing of temperature transmitters used in PLC and DCS based control loops.
On-site calibration in power plants, petrochemical plants, and steel industries where high temperature processes are common.
Laboratory calibration of temperature sensors in thermal calibration laboratories and quality assurance departments.

Model	1200TS & 1200TS(i)
Range	150°C to 1200°C
Resolution	0.1°C up to 999.9°C & 1°C above 999.9°C
Accuracy	±2°C
Stability	±0.2°C @ 150°C to ±0.4°C @ 1200°C
Stabilization Time	15 minutes
Units	°C/°F Switchable
Measurements (Only for ‘I’ Model)	8 Types of TC & RTD Pt-100(385), mV, mA
Display	LED Green
Heating Time	60 to 75 minutes (approx.)
Cooling Time	120 to 150 minutes (approx.)
Switch Test Facility	Provided (only for ‘I’ Model)
Insertion Tube Diameter	33mm
Insertion Tube Depth	130 mm(80mm deep + 50mm top insulator)
Power Supply	230V AC ±2.5/50 Hz
Weight	10 Kgs.
